Oracle Cloud Infrastructure Documentation

LBaaS

Using the LBaaS subject area, you can create reports about the load balancer resources.

These reports enable you to track the different attributes and metrics for load balancer resources across tenancies and compartments.

Business Questions

The subject area can answer following business questions:

  • What is the total number of backends created?
  • What is the total number of LBaaS backends created?
  • What is the total number of subnets created?
  • What is the total number of LBaaS backends created?
  • What is the total number of health checkers created?
  • What is the total number of LBaaS health checkers created?
  • What is the total number of Listeners created?
  • What is the total number of LBaaS listeners created?
  • What is the total number of listeners created and the associated details?
  • What is the total number of private IPs created?
  • What is the total number of public IPs created?
  • What is the total number of LBaaSs created?

Logical Model


Fact table LBaaS connected to six dimension tables, Subscription, Tenancy, Compartment, Date, LBaaS Load Balancer and LBaaS - Fact Details.

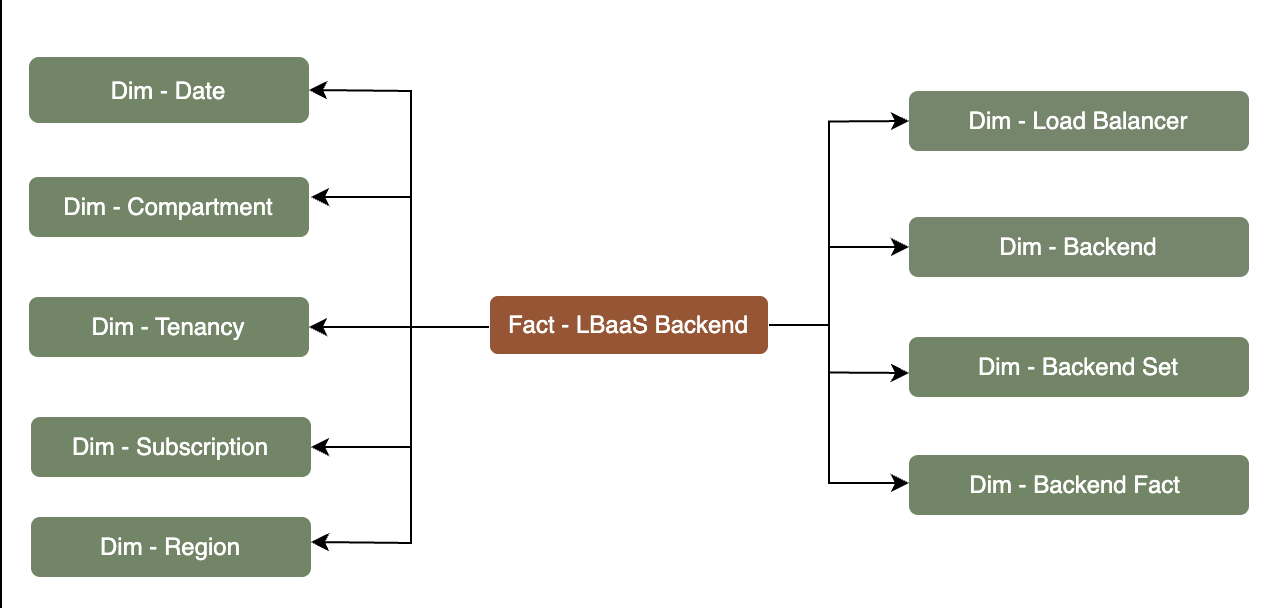

Fact table LBaaS Backend connected to nine dimension tables, Subscription, Tenancy, Compartment, Date, Region, Load Balancer, Backend, Backend Set, and Backend Fact.

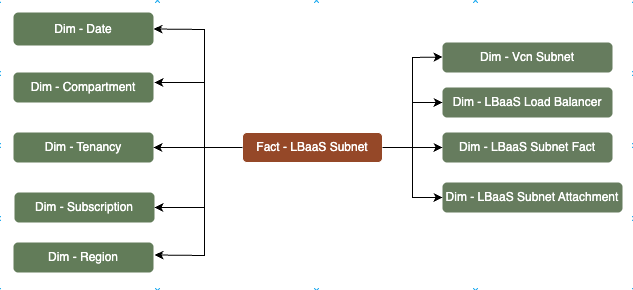

Fact table LBaaS Subnet connected to nine dimension tables, Subscription, Tenancy, Compartment, Date, Region. LBaaS Load Balancer, Vcn Subnet, LBaaS Subnet Attachment, and LBaaS Subnet Fact.

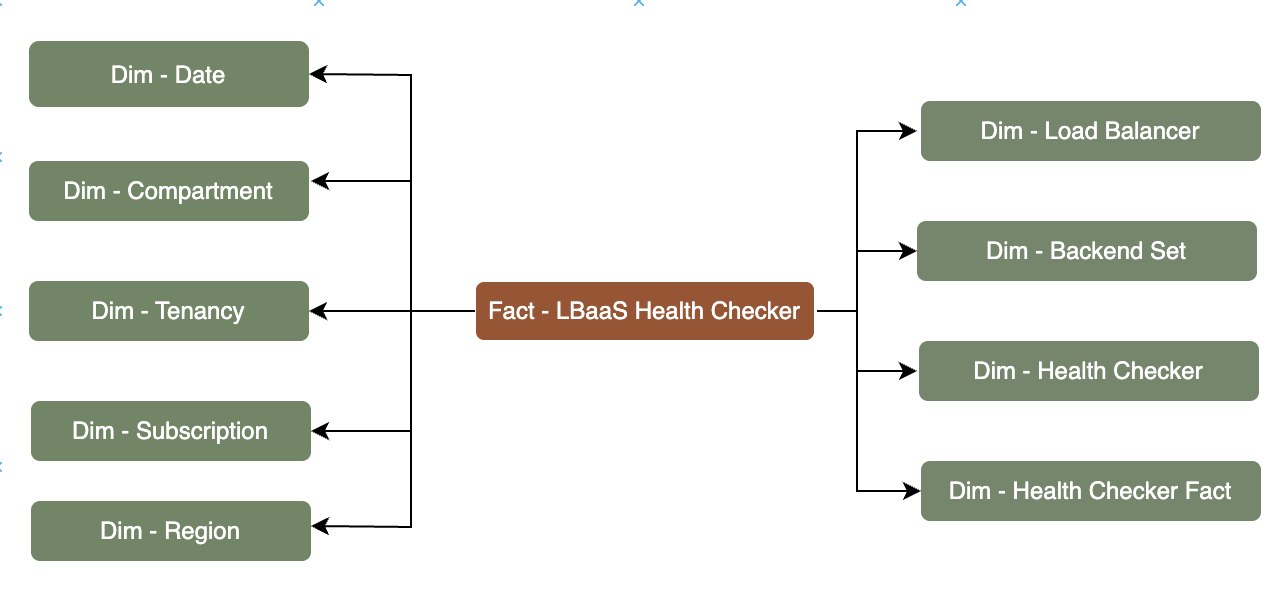

Fact table LBaaS Health Checker connected to nine dimension tables, Subscription, Tenancy, Compartment, Date, Region, Load Balancer, Backend Set, Health Checker, and Health Checker Fact.

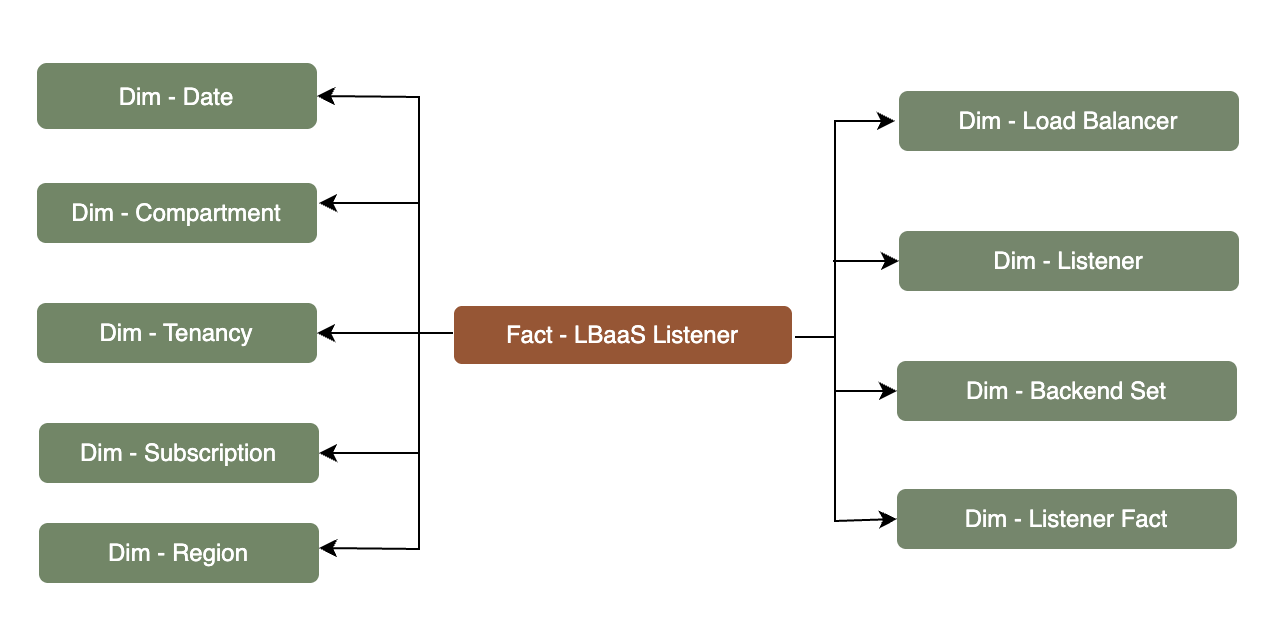

Fact table LBaaS Listener connected to six dimension tables, Subscription, Tenancy, Compartment, Date, Region, Load Balancer, Listener, Backend Set, and Listener Fact.

Metric Details

The fact folders in this subject are show the following metrics:
Metric Details for LBaas
Metric Description
Backend Count This metric is calculated as the sum of total number of backends.
Backend Set Count This metric is calculated as the sum of total number of backend sets.
Health Checker Count This metric is calculated as the sum of total number of health checker.
Lbaas Count This metric is calculated as the count of total records in LBaaS fact.
Listener Count This metric is calculated as the sum of total number of listeners.
Private IP Count This metric is calculated as the sum of total number of private IPs.
Public IP Count This metric is calculated as the sum of total number of public IPs.
The fact folders in this subject are show the following metrics:
Metric Details for LBaas Backend
Metric Description
Backend Count This metric is calculated as the sum of total number of backends.
LBasaS Backend Count This metric is calculated as the sum of total number of LBaaS backends.
The fact folders in this subject are show the following metrics:
Metric Details for LBaas Subnet
Metric Description
Subnet Count This metric is calculated as the sum of total number of subnets.
LBaaS Subnet Count This metric is calculated as the sum of total number of LBaaS subnets.
The fact folders in this subject are show the following metrics:
Metric Details for LBaas Health Checker
Metric Description
Health Checker Count This metric is calculated as the sum of total number of health checkers.
LBaaS Health Checker Count This metric is calculated as the sum of total number of LBaaS health checkers.
The fact folders in this subject are show the following metrics:
Metric Details for LBaas Listener
Metric Description
Listener Count This metric is calculated as the sum of total number of Listeners.
LBaaS Listener Count This metric is calculated as the sum of total number of LBaaS Listeners.
